Optical Plastic Lens SEMI-FINISHED LENS

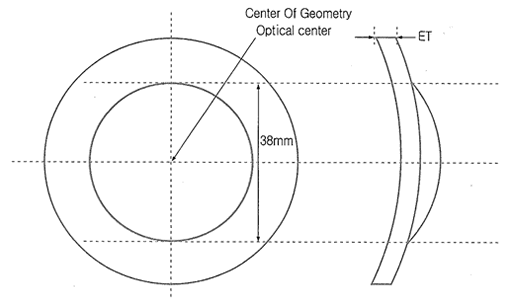

 1.56 Lenticular Lens
 Material : 1.56 Index Resin (Ne:1.549, Abbe value=38, Specific gravity=1.28)
 Segment Size : 38mm
CONVEX SURFACE CONVEX
SURFACE		 C.T
(mm)		 E.T
(mm) 		Dia
(mm)
Nominal
Curve		 True
Curve 		Sag
(sagitta : 40§®)		 Sag
(sagitta : 40§®)		 Radius Radius
1.549 1.530
12.00 13.52 13.05 5.05 8.22 40.61 281.70 15.5 10.7 65
14.00 15.05 14.52 5.69 9.39 36.49 14.4 9.0
16.00 17.15 16.55 6.62 11.19 32.02 15.8 9.5
18.00 19.34 18.67 7.68 13.51 28.39 18.0 10.5
True Curve:0.25dpt Center Thickness:0.5mm Edge Thickness:0.5mm Diameter Ranges:0.5mm
