Optical Plastic Lens SEMI-FINISHED LENS

 Clex 1.67 Lenticular Lens
 Material : 1.67 Index Resin (Ne:1.665, Abbe value=32, Specific gravity=1.35)

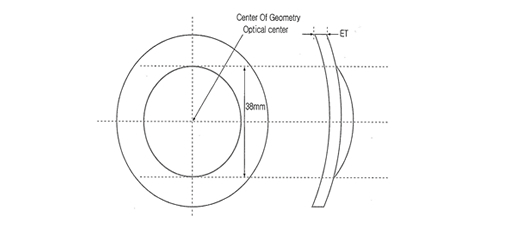

 Segment Size : 38mm
CONVEX SURFACE CONCAVE
SURFACE 		C.T
(mm)		 E.T
(mm) 		Dia
(mm)
Nominal
Curve		 True
Curve		 Sag
(sagitta:40mm) 		Sag
(sagitta:50mm) 		Radius
 Radius
1.665 1.530
12.00 16.02 12.77 4.93 8.01 41.50 281.70 15.5 10.7 65
14.00 17.70 14.11 5.51 9.05 37.57 14.4 9.0
16.00 20.57 16.39 6.55 11.04 32.33 15.8 9.5
18.00 23.07 18.38 7.53 13.16 28.83 18.0 10.5
True Curve :0.25dpt Center Thickness : 0.5mm Edge Thickness : 0.5mm Diameter Ranges:0.5mm
